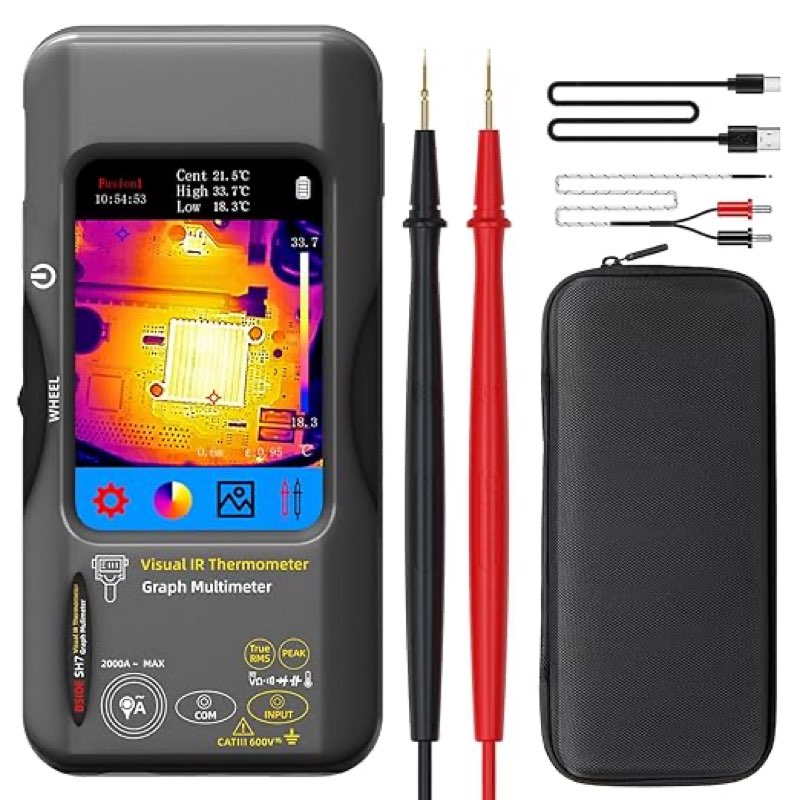

Features: 2-in-1 thermal imaging camera multimeter: 320×320 Infrared Thermal Camera 20000 Count Digital Multimeter 3.98-inch full viewing angle visual touch screen Display the high/low/center temperature Temperature alarm/warning thresholds can be set, font color alarms 7 language settings: Chinese, English, Japanese, German, Spanish, French, Italian (Russian can be added) Adjustable emissivity, adjustable backlight, adjustable time and date Adjustable auto shut-off time, adjustable temperature measurement unit ?/?/K With 15 Thermal Palettes, 2500mAh rechargeable Li-ion battery Can be used with a flexible current coil to test 2000A AC current. Thermal imaging camera and multimeter interface can be screenshotted and data can be transferred to a PC for analysis Specification: Thermal Camera Mode: Thermal Imaging Camera: 320 x 320 resolution Sensor Type: Vanadium Oxide (VOx) Microbolometer Response Band: 8-14pm Noise Equivalent Temperature Difference (NETD): ?60mK(@25?,F#1.0) Spatial resolution (IFOV): 8.89mrad Frame rate: 25Hz Imaging lens focal length: 1.35mm Temperature measurement resolution: 0.1? Temperature measurement focal length: 0.3m-3m adjustable Temperature range: -20?~550?(-4°~1022°F)/0.1?. Temperature measurement unit: degrees Celsius, degrees Fahrenheit, Kelvin 15 kinds of color palettes: white heat, black heat, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice and fire, rain, green heat, red heat, dark blue Screen Display resolution: 480*320 Image storage: 30000 pictures Multimeter mode: DC Voltage (V): 2.0000V/0.0001V/±(0.05%+3) 20.000V/0.001V/±(0.05%+3) 200.00V/0.01V/±(0.5%+3) 1000V/0.1V/±(0.5%+3) DC Voltage (mV): 20.000mV/0.001mV/±(0.1%+3) 200.00mV/0.01mV/±(0.1%+3) AC Voltage (V): 2.0000V/0.0001V/±(0.5%+3) 20.000V/0.001V/±(0.5%+3) 200.00V/0.01V/±(0.5%+3) 750V/0.1V/±(0.5%+3) AC Voltage (mV): 20.000mV/0.001mV/±(0.5%+3) 200.00mV/0.01mV/±(0.5%+3) Resistances: 200.00?/0.01?/±(0.5%+3) 2.0000k?/0.0001k?/±(0.2%+3) 20.000k?/0.001k?/±(0.2%+3) 200.00k?/0.01k?/±(0.2%+3) 2.0000M?/0.0001M?/±(1.0%+3) 20.000M?/0.001M?/±(1.0%+3) 200.00M?/0.01M?/±(5.0%+5) Capacitors: 999.99nF/0.01nF/±(5.0%+5) 9.999uF/0.001?F/±(2.0%+5) 999.99uF/0.01?F/±(2.0%+5) 99.999mF/0.001mF/±(5.0%+10) Flexible Current Clamp AC Current: 200.0A/0.1A 2000A/1A Temperature: (-20~1300)?/1?/±(2.0%+5) (-4~2372)?/1?/±(2.0%+5) Diodes: Yes Continuity: Yes Size: 169*81*26.8mm Weight: 270.7g Package content: 1×Thermal imaging camera multimeter 1×thermocouples 1×Test Leads 1×Storage bag 1 x Charging Cable 1 x Instruction manual
